Edcast Encoder Setup Tutorial

1

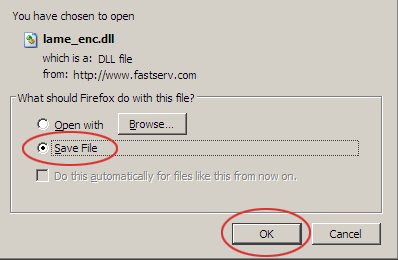

In order to broadcast with EdCast we firstly need to download the lame_enc.dll, you can download the file from here.

2

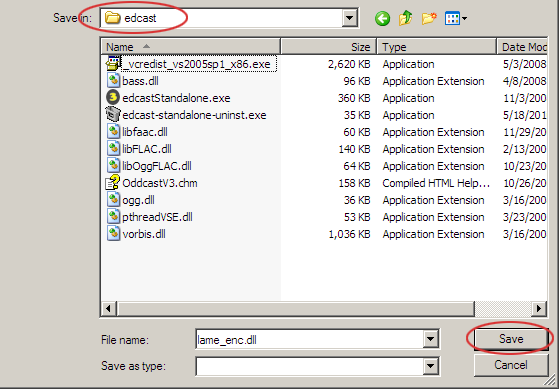

We now need to go to our edcast installation folder and paste our lame_enc.dll file there.

3

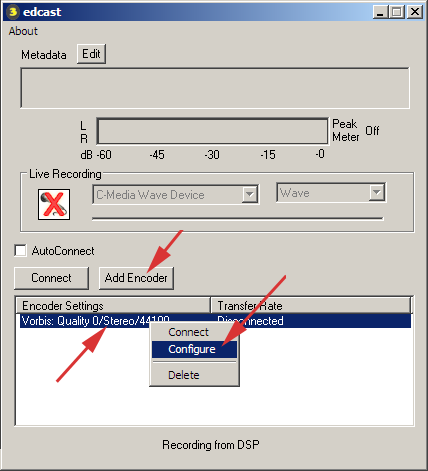

To configure our edcast we click the 'Add Encoder' button after which we right-click the new encoder that appears below it and click on configure.

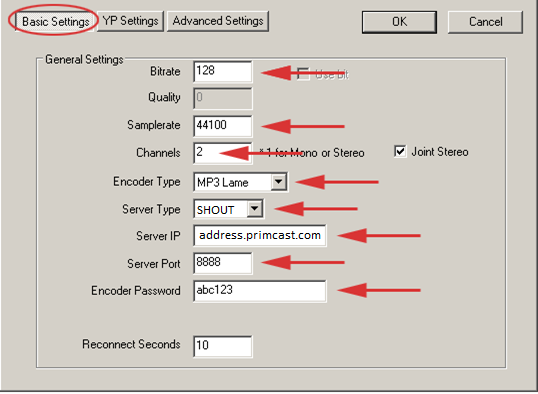

4 In the 'Basic Settings' section, set up the encoder.

Enter your chosen bitrate, and select your sample rate, select the the 'MP3 Lame' encoder. After that we will input our address and port for our server and our password.

5

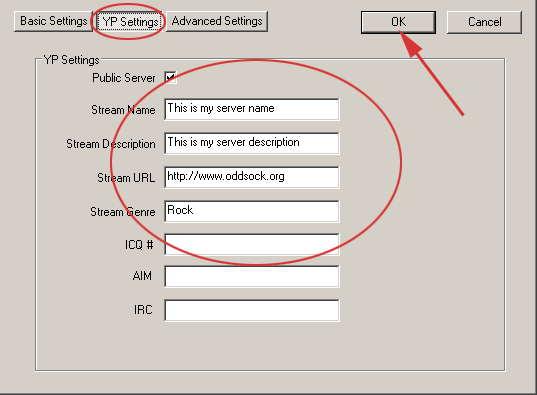

In the 'YP Settings' section, enter your station details such as Station Name, description etc. and click 'OK'

6Start encoding

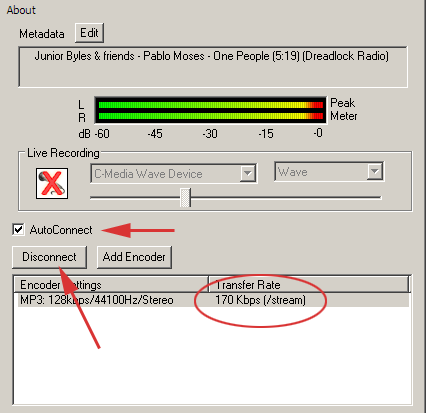

Tick the 'AutoReconnect' box Highlight the new encoder, then click the 'Connect' button You will see information about the encoder status in the 'Transfer Rate' column.
